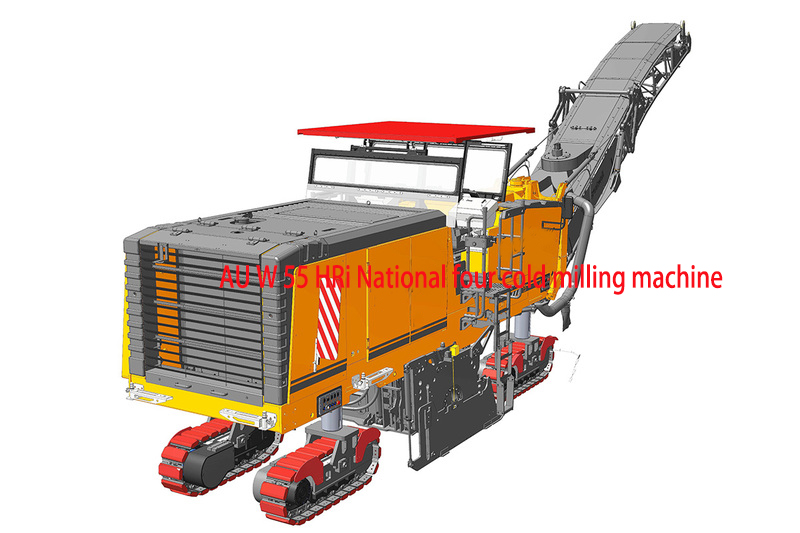

AUW 55 HRi National four cold milling machine

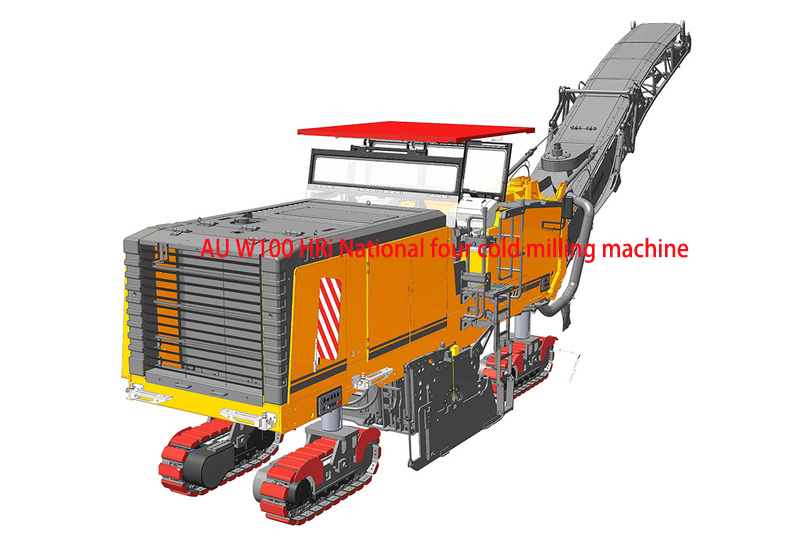

| AU W100 HRi national four cold milling machine | Technical parameters of Wirtgen W 100 HRi national four cold milling machine | ||||
| engine | Manufacturer/Model | VOLVO/TAD1643VE | Model: | W 55 HRi cold milling machine | |
| Power/Maximum speed | 565KW @2000 rpm | engine | Foton Cummins F4.5-CS4-119 | ||
| Let out | State stage 3 | Rated power, 2,200 RPM | At 2,200 RPM: 89 kW / 119 hp / 121 PS | ||
| Milling width (mm) | 2000 | Milling width | 500 mm | ||
| Milling depth (cm) | 0～33 | Milling depth | 0-180 mm | ||
| Edge milling depth (cm) | 0 ～ 45 | Fuel tank | 160 l | ||
| Milling rotor diameter (mm) | 1070 | cistern | 320 l | ||
| Milled rotor | Rotor cutter spacing (mm) | 18 | Milling speed | 0-30.5 m/min | |
| Fuel Tank (L) | 1130 | Travel speed | 0-8 km/h | ||
| Hydraulic Tank (L) | 220 | Emission standard | Kokuni IV | ||
| Box volume | Water tank (L) | 3000 | Width of discharge belt | 400 mm | |
| Travel speed (m/min) | 0 ～ 88 | ||||
| Driving performance | Minimum milling turning radius (m) | 2 | |||
| Track assembly | Track, front and rear (L × W × H)(mm) | 1850×300×665 | |||
| Receiving belt width (mm) | 850 | ||||
| Feed conveyor swing Angle (°) | 120 | ||||
| Theoretical capacity (m /h) | 420 | ||||
| Material handling system | Feed height (mm) | 4900 | |||
| Shipping weight (t) | 31.5 | ||||
| Working weight (t) | 33.5 | ||||
| Maximum weight (t) | 35.5 | ||||
| weight | Removable configuration (optional) (t) | 1.5 |
